Canyon Ridge® Carriage House (5-Layer)

Insulated carriage house garage doors (faux wood)

If you want the look of wood without the maintenance, a composite overlay door is a great option. Our 5-Layer faux wood carriage house garage door has an insulated steel base for strength and durability, covered with moisture-resistant composite cladding and overlays molded from real wood. This gives it a realistic wood grain and texture while being low-maintenance. Like wood, the door can be painted or stained to suit your style.

Clopay® Avante® garage doors, crafted with sleek aluminum and glass panels, bring a modern and stylish look to any home or building. These doors are backed by a five-year warranty on the finish and a three-year warranty on the hardware. The Avante AX/AXU models offer the following features:

5-layer construction

Steel + insulation + steel + composite cladding + composite overlay

Faux wood-look composite

Faux wood composite cladding and overlay materials are made from real wood pieces to mimic the natural texture and grain patterns. You can choose from Clear Cypress, Pecky Cypress, or Mahogany in various paint and stain colors to create a custom look. The result is a beautiful carriage house door you’ll enjoy for years.

Design Customization

Choose from fifteen carriage house designs with optional windows and decorative hardware. These doors come primed, painted, or stained in eight standard finishes. You can also get custom ColorBlast® paint in 1,500 different shades.

Insulation

2″ Intellicore® polyurethane insulation with a thermal break. R-Value of 20.4.

Door Reinforcement

WindCode® door reinforcement product available for high wind load applications.

Environmental Assurance

Clopay doors meet all environmental laws and regulations and do not contain HFCs. They comply with:

  • California SB 1013
  • Washington HB 1112 on Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations on ozone-depleting substances and halocarbon alternatives
  • New Jersey A-5583/S-3919 Greenhouse Gas Bill

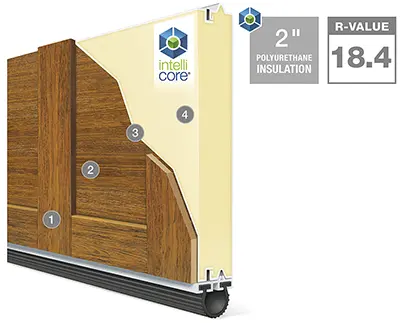

Canyon Ridge® Louver garage doors have a sturdy steel base and are covered with low-maintenance, moisture-resistant composite overlays that won’t rot, warp, or crack.

  1. Composite Overlay
  2. Composite Cladding
  3. Steel
  4. 2″ Intellicore® Polyurethane Insulation
  5. Steel

Intellicore® Insulation

Warmer. Quieter. Stronger.

Garage doors with Intellicore insulation technology are the best choice for homeowners. Clopay’s Intellicore is a special polyurethane foam injected into the door, expanding to fill it completely. This creates a door that is very strong, energy-efficient, and durable.

Additional Features

  • Rust-Prevention System: The steel panels are protected with multiple layers, including hot-dipped galvanizing, a protective metal oxide coating, and a baked-on primer and top coat.
  • A replaceable vinyl bottom weather seal in a rust-resistant aluminum holder keeps out air and water.
  • The Safe-T-Bracket® prevents injury if the bottom bracket is removed while the door is closed and under tension.
  • All Intellicore® insulated doors have 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
  • The product meets the 2015 IECC air infiltration requirement of 0.40 cfm/ft² or less (IECC, Section C402.5.2).
  • Window grilles are removable for easy cleaning.

Explore the limitless design possibilities with our Canyon Ridge 5-Layer and create a garage door you’ll love for years.

Pick a door design, choose between a solid top or windows, select a composite style, and choose a paint or stain color and hardware.

Make sure to use our Door Imagination System to visualize it before you buy.

Door Designs

Series 1

Design 01

Design 11

Design 12

Design 13

Series 2

Design 21

Design 22

Design 23

Series 3

Design 31

Design 32

Design 53

Design 34

Design 35

Design 36

Design 37

Design 38

Top Sections

Series 1 & 2 Solid

TOP11

TOP12

TOP13

ARCH1

Series 1 & 2 Window Designs

REC11

REC13

REC14

SQ23

SQ24

ARCH1

ARCH3

ARCH4

ARCH13

ARCH14

Double Top Sections

ARC1A-Solid-Double Door

ARC1A-Windows-Double Door

ARC3A-Windows-Double Door

ARC4A-Windows-Double Door

ARC13A-Windows-Double Door

ARC14A-Windows-Double Door

Specialty Glass Options

Seeded

Rain

Frosted

Obscure

Note: Impact rated windows available only in clear.

Material Options

Composite Cladding Materials

Clear Cypress

Mahogany

Pecky Cypress

Clear Cypress

Mahogany

Composite Cladding and Overlay material options may be mixed and matched.

Colors

Medium Finish

Dark Finish

Walnut Finish

Slate Finish

Black Finish*

White Finish*

Primed (No Finish)

Bronze*

Charcoal*

*Available on select models.
Mahogany finish is available in black, white, bronze, and charcoal.
Steel surfaces feature a woodgrain texture.
Two-tone options available: one color for the base layer (steel) and another for the top layer (composite overlay).
Custom colors are available through the ColorBlast® program.

Hardware​

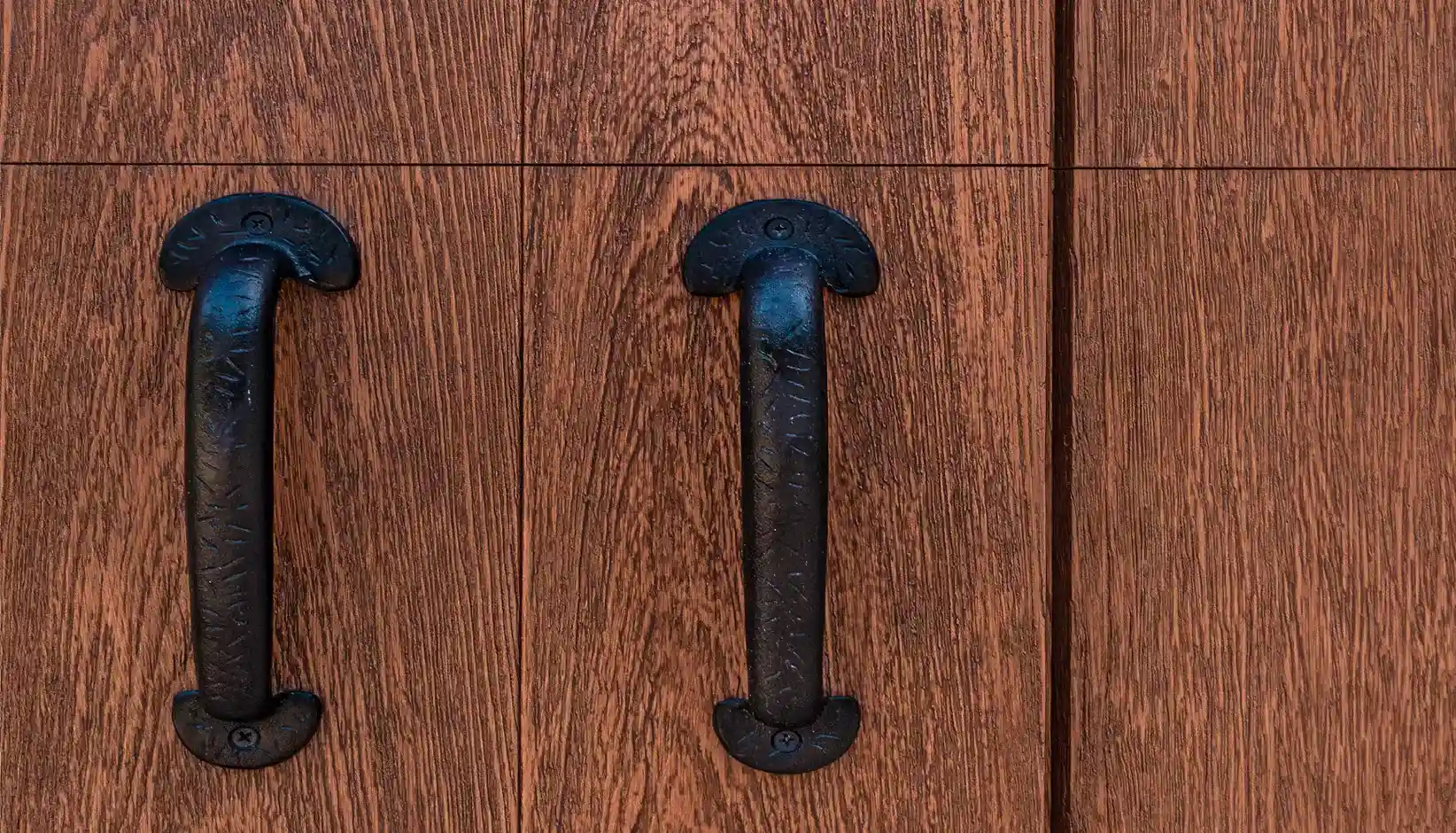

Handles

Spade Lift Handles (included)

Spear Lift Handles

Colonial Lift Handles

Decorative Lift Handles

Ring Door Knocker

Escutcheon Plates

Twisted “L” Handles

Plates

Spade Step Plate

Spear Step Plate

Colonial Step Plate

Hinges

Spade Strap Hinge

Spear Strap Hinge

Colonial Strap Hinge

Canyon Ridge Brochure

Canyon Ridge® garage doors offer the best of both worlds – the elegant appearance of real wood with the practical benefits of steel and composite materials.

Products Available Through Independent Dealers

A garage door can take up to 30% of your home’s front exterior, so picking the right design is crucial. Clopay offers the widest range of options to help you find the perfect fit.

Residential Sectional Insulated Steel Doors

Instructions for installing our residential insulated steel garage doors

Installation Warranty

All of our Master Authorized and Authorized Dealers provide at least a 1-year installation warranty on Clopay replacement doors.

Canyon Ridge Care and Maintenance

Canyon Ridge Care and Maintenance
