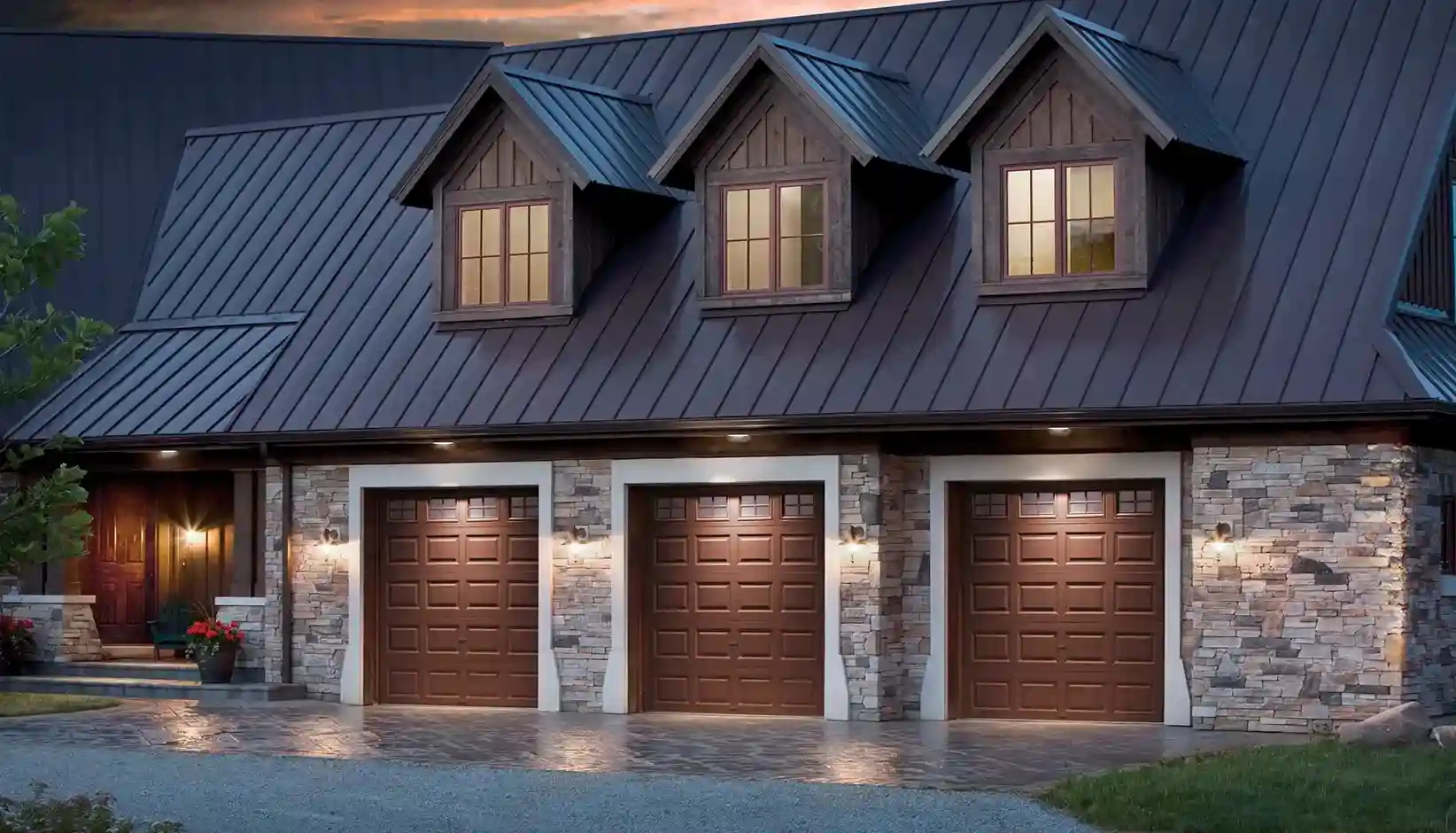

Classic™ Steel

Insulated raised panel steel doors

Enhance your garage's appearance with our Classic™ Steel insulated raised panel doors. These Classic Steel Garage Doors combine traditional style with modern functionality. These robust steel doors offer exceptional strength and security, while the insulated core helps regulate garage temperature. Choose from a variety of styles and colors to complement your home's architecture. Classic™ Steel doors are a timeless choice for a functional and attractive garage entrance.

Our Classic™ Steel collection offers the timeless raised-panel style garage door with many construction and design choices. You can customize the classic look to match your home by selecting door sizes, decorative top window inserts, and specialty glass for light and privacy. These strong steel garage doors come in 3, 2, or 1-layer construction with various insulation options.

4-Layer Construction

Available in 3, 2 or 1-layer construction options

Design Customization

Steel garage doors come in short and long panel designs, with options for insulation and windows. They are offered in 14 colors, including Ultra-Grain wood-look finishes. You can also choose from 1,500 custom paint colors with ColorBlast.

Insulation

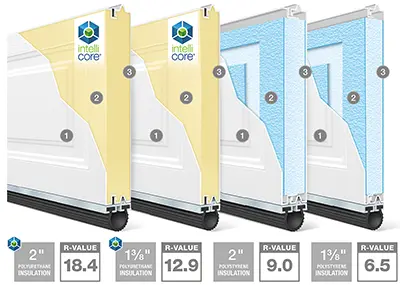

You can choose from different insulation options like 2-inch or 1-3/8-inch Intellicore® polyurethane, 2-inch or 1-3/8-inch polystyrene, or 1-5/16-inch vinyl-backed polystyrene. These options provide insulated door R-values ranging from 6.5 to 18.4.

Door Reinforcement

WindCode®door reinforcement product available for high wind load applications.

Environmental Assurance

Clopay doors follow environmental rules and don’t have HFCs. They meet:

  • California SB 1013
  • Washington HB 1112 – About Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian laws updating ozone-depleting substances and halocarbon alternatives
  • New Jersey A-5583/S-3919 – A Bill about Greenhouse Gases

Our strong Classic Steel doors are available in 3, 2, or 1-layer options with various insulation choices. Find the ideal mix of style and practicality for your garage today.

  1. Steel
  2. Intellicore® Polyurethane or Polystyrene Insulation
  3. Steel

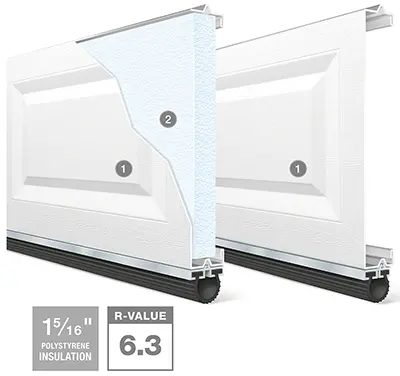

  1. Steel
  2. Polystyrene Insulation

Intellicore® Insulation

Warmer. Quieter. Stronger.

Garage doors with Intellicore insulation technology are the smartest option for homeowners. Clopay’s Intellicore is a special foam injected into the door, expanding to fill it completely. This makes the door incredibly strong, energy-efficient, and long-lasting.

Additional Features

  • Rust-Prevention System: The steel covering is shielded with a tough coating system, which includes hot-dipped galvanizing, a protective metal oxide pretreatment, and a baked-on primer and top coat.
  • A replaceable vinyl bottom weather seal in a rust-resistant aluminum holder helps block out air and water.
  • A patented Safe-T-Bracket® stops serious injury that could happen if the bottom bracket were removed while the garage door is closed and under pressure.
  • All Intellicore® insulated doors include 10-ball nylon rollers and strong 14-gauge steel hinges as standard.
  • The product meets the 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2).
  • Window grilles are removable for easy cleaning.

Raised panel garage doors are what many people picture when they think of a classic garage door – they have long and short panels, windows, and come in lots of colors. They help highlight your home’s design with depth and symmetrical patterns.

Door Designs

Elegant Short 3-layer doors

Elegant Long 3-layer doors

Traditional Short Panel 2 and 1-layer doors

Traditional Long Panel 2 and 1-layer doors

The appearance of the door and the number of sections may vary depending on the door height. For complete details, click here.

Top Sections

Solid Top Sections

Solid Elegant Short

Solid Elegant Long

Decorative Insert Series Windows

Colonial 509

Charleston 508

Stockton 612

Sunset 601

Charleston 608

Madison 611

Prairie 510

Madison ARCH613

Prairie 610

Sunset 501

Sunset 503

Sunset 603

Plain Short

Plain Long

Architectural Series Windows

Plain Short

Short With Rectangular Grilles

Plain Long

Short With Squares Grilles

Long With Rectangular Grilles

Long With Square Grilles

ARCH1 Plain

ARCH1 With Vertical Grilles

ARCH1 With Grilles

ARCH2 Plain

ARCH2 With Grilles

ARCH2 With Vertical Grilles

Kristin Short

Kristin Long

Trenton Short

Trenton Long

Clayton Short

Clayton Long

Wrought Iron Short*

Wrought Iron Long*

Wrought Iron Arch*

DOUBLE TOP SECTIONS

Madison ARCH613

Madison ARCH613 (Double Door)

Sunset 502 (7′, 7’6″, 12′ widths only)

Sunset 502-Double Door

Sunset 503-Double Door

Sunset 504 (14′, 15′, 15’6″ widths only)

Sunset 505 (16′, 17′, 18′ widths only)

Sunset 506 (10′, 20′ widths only)

Sunset 603-Double Door

Sunset 605 (Double Door)

*Acrylic window designs.
**Available only on 2″ thick 3-Layer doors only.

Specialty Glass Options

Rain

Frosted

Obscure

Seeded

Colors

Standard Colors

Standard White

Almond

Sandtone

Bronze*

Chocolate

Mocha Brown*

Hunter Green*

Gray*

Charcoal*

Desert Tan

Premium Colors

Black*

Ultra-Grain Classic Medium Finish*

Ultra-Grain Classic Cherry Finish*

Ultra-Grain Classic Walnut Finish*

*Available on select models.
ColorBlast® Custom Paint Option Available.

Classic Premium Brochure

Clopay Classic™ Steel Premium garage doors with Intellicore® insulation technology are the top choice for homeowners who want smart solutions. The Intellicore® insulation is a special polyurethane foam injected into our Premium doors, expanding to fill the entire structure. This creates a door that’s incredibly strong and durable. The dense insulation also makes the door quieter, and with an industry-leading R-value of 18.4, it ensures year-round comfort and better energy efficiency.

Classic Steel Value Plus Brochure

Enhance your home’s look and energy efficiency with a Clopay Value Plus insulated garage door. Available in 24 or 25 gauge steel with 1-5/16″ polystyrene insulation, Value Plus models provide moderate insulation, strength, security, and quiet operation. They also boast a pleasing appearance. Choose from two panel styles, various colors, and numerous window options to create a door that suits your budget and boosts your home’s curb appeal.

Classic Steel Value Brochure

Enhance your home’s look with a Clopay Classic™ Steel Value garage door. Built with durable 24 or 25 gauge steel and a sturdy 2″ steel frame construction, Classic™ Steel Value models offer enduring beauty and performance. Select from various panel styles, colors, and window options to create a door that matches your budget and elevates your home’s curb appeal.

Ultra-Grain Paint Option Brochure

Clopay’s Ultra-Grain® finish offers the ideal blend: the authentic appearance of natural wood paired with the low maintenance and energy efficiency advantages of insulated steel. Unlike real wood, it’s UV-resistant and resistant to moisture, ensuring it won’t fade, rot, split, shrink, or crack. This saves both you and the environment the material, energy, and resources needed to maintain or replace door components.

Products Available Through Independent Dealers

A garage door can make up to 30% of your home’s front exterior, so choosing the right design is crucial. Clopay offers the widest selection to help you find the perfect one.

Products Available at Home Depot

Your garage door can make up to 30% of your home’s front appearance, so picking the right design matters. Clopay offers the broadest range of options to help you find the perfect fit.

Residential Sectional Insulated Steel Doors

Installation instructions for our residential insulated steel garage doors

Installation Warranty

All of our Master Authorized and Authorized Dealers offer a minimum 1 Year installation Warranty on Clopay replacement doors.

Steel Garage Doors Care and Maintenance

Steel Garage Doors Care and Maintenance

Residential Sectional 1-Layer And 2-Layer Doors

Installation Instructions for Residential Garage Doors
