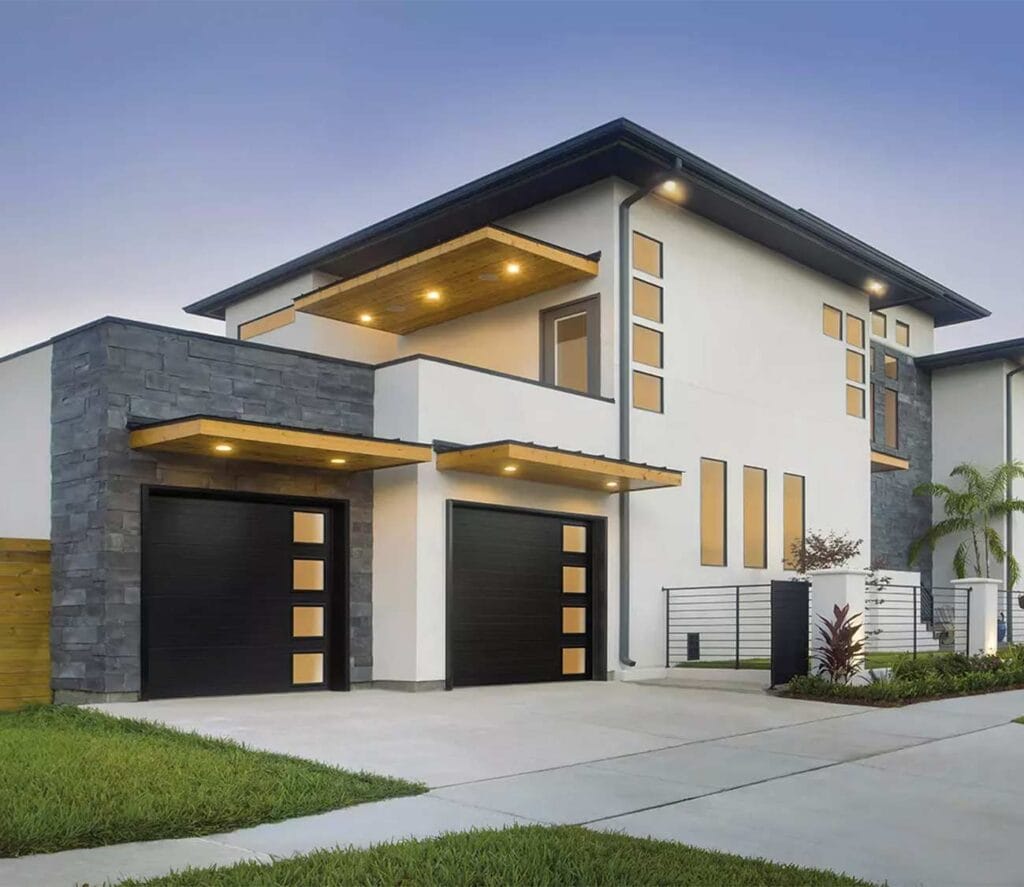

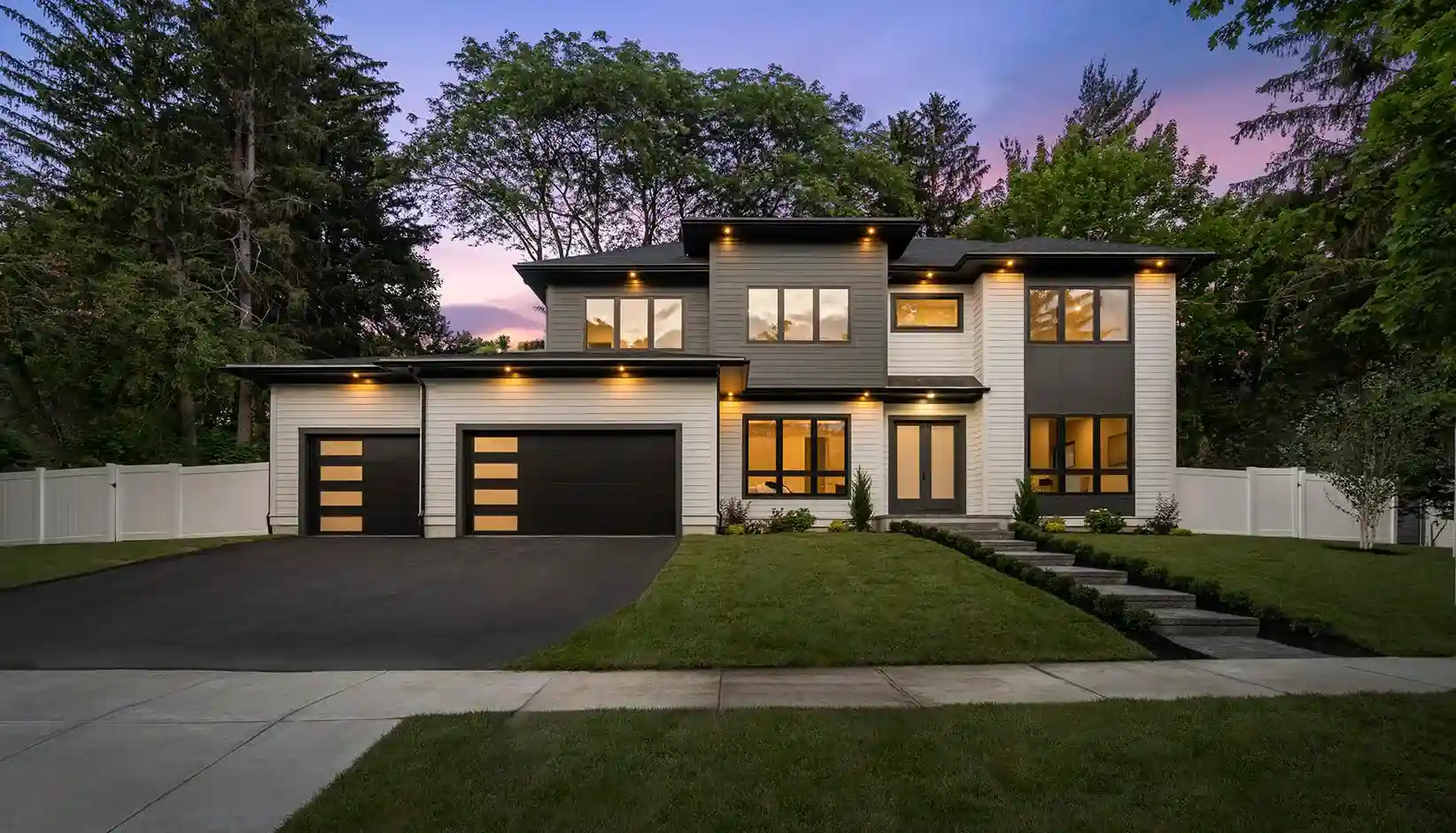

Modern Steel™

Subtle modern beauty, simple up-keep.

Whether you're going for a modern look or a retro vibe, our Modern Steel garage doors offer plenty of low-maintenance styles to enhance your home's curb appeal. Let your imagination run wild as you customize a door with or without grooves, incorporate square, rectangular, or contemporary slim windows in a unique arrangement, or keep it clean with a solid flush panel design. You can choose from multiple paint colors, as well as Ultra-Grain wood-look and Lustra matte finishes to perfectly match your home's aesthetic.

3-, 2- or 1-Layer Construction

Available in 3, 2 or 1-layer construction options

Design Customization

Select from flush or grooved panel designs, each offering distinct textures and paint options including solid colors, Lustra™ matte, Ultra-Grain®, or Ultra-Grain Plank wood-look finishes. Short, long, and contemporary slim windows can be arranged vertically on one or both sides, or placed in some or all sections.

Insulation

Insulation options include 2″ or 1-3/8″Intellicore® polyurethane foam, and 2″, 1-3/8″ or 1-5/16″ polystyrene. R-values range from 6.3 to 18.4.

Door Reinforcement

WindCode®door reinforcement product available for high wind load applications.

Environmental Assurance

Clopay doors adhere to environmental laws and regulations and do not contain HFCs. They comply with:

  • California SB 1013
  • Washington HB 1112
  • Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
  • New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Modern Steel doors come in 3, 2, or 1-layer construction with multiple insulation choices.

  1. Steel
  2. Intellicore® Polyurethane or Polystyrene Insulation
  3. Steel

Intellicore® Insulation

Warmer. Quieter. Stronger.
Garage doors with Intellicore insulation technology are the smartest choice for homeowners. Clopay’s Intellicore is a special polyurethane foam injected into the door, expanding to fill the entire structure. The result? A door with amazing strength, energy efficiency, and durability.

Additional Features

  • Rust-Prevention System: Steel skins are shielded with a durable, multi-layer coating system, starting with hot-dipped galvanizing, followed by a protective metal oxide treatment, and finished with a baked-on primer and top coat.
  • A replaceable vinyl bottom weather seal in a rust-resistant aluminum retainer helps keep air and water out.
  • A patented Safe-T-Bracket® prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • All Intellicore® insulated doors come standard with 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.
  • The product complies with the 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2).
  • Window grilles are removable for easy cleaning.

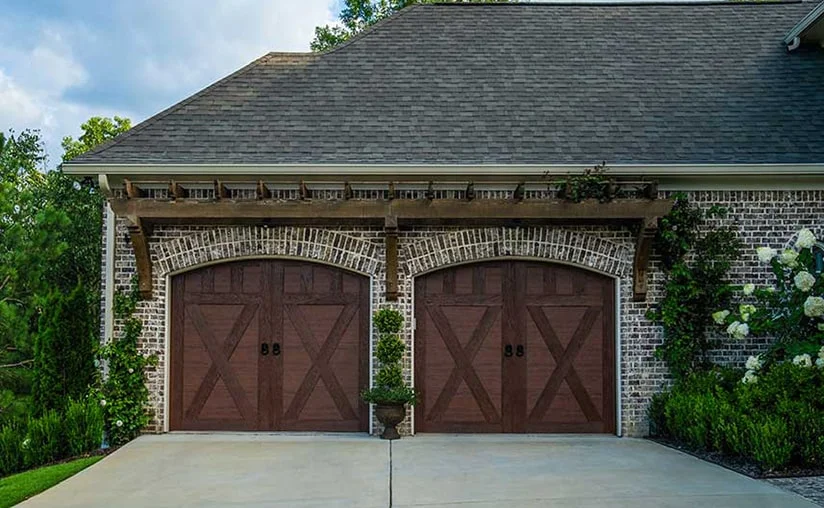

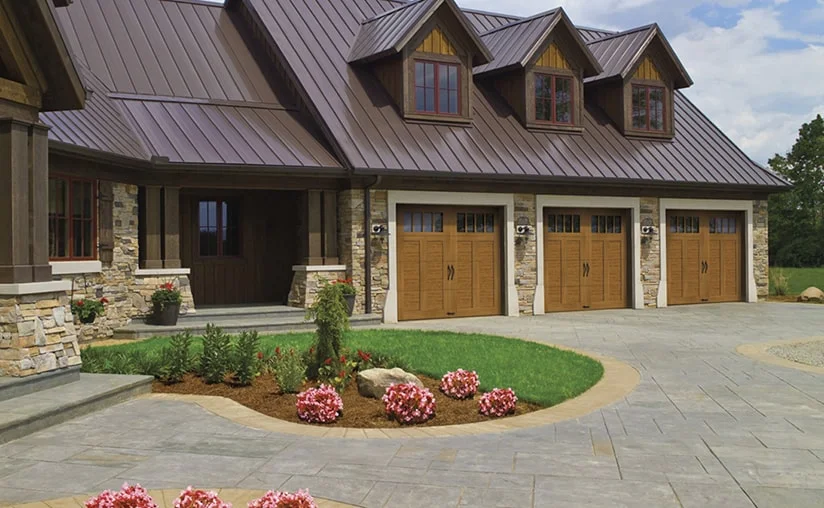

Raised panel garage doors are what many people picture when they think of a classic garage door – they have long and short panels, windows, and come in lots of colors. They help highlight your home’s design with depth and symmetrical patterns.

Door Designs

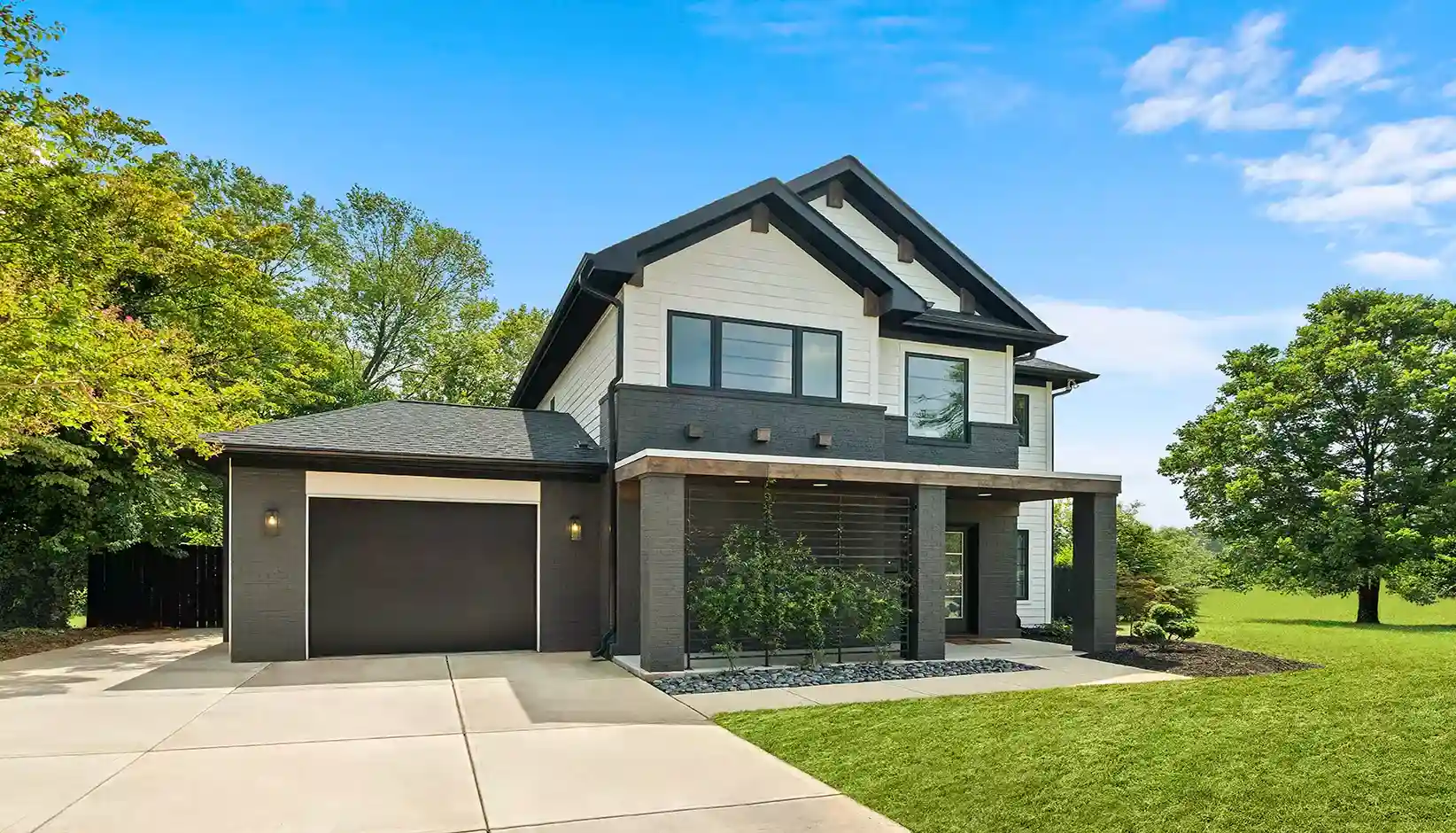

Flush Panel

Grooved Panel*

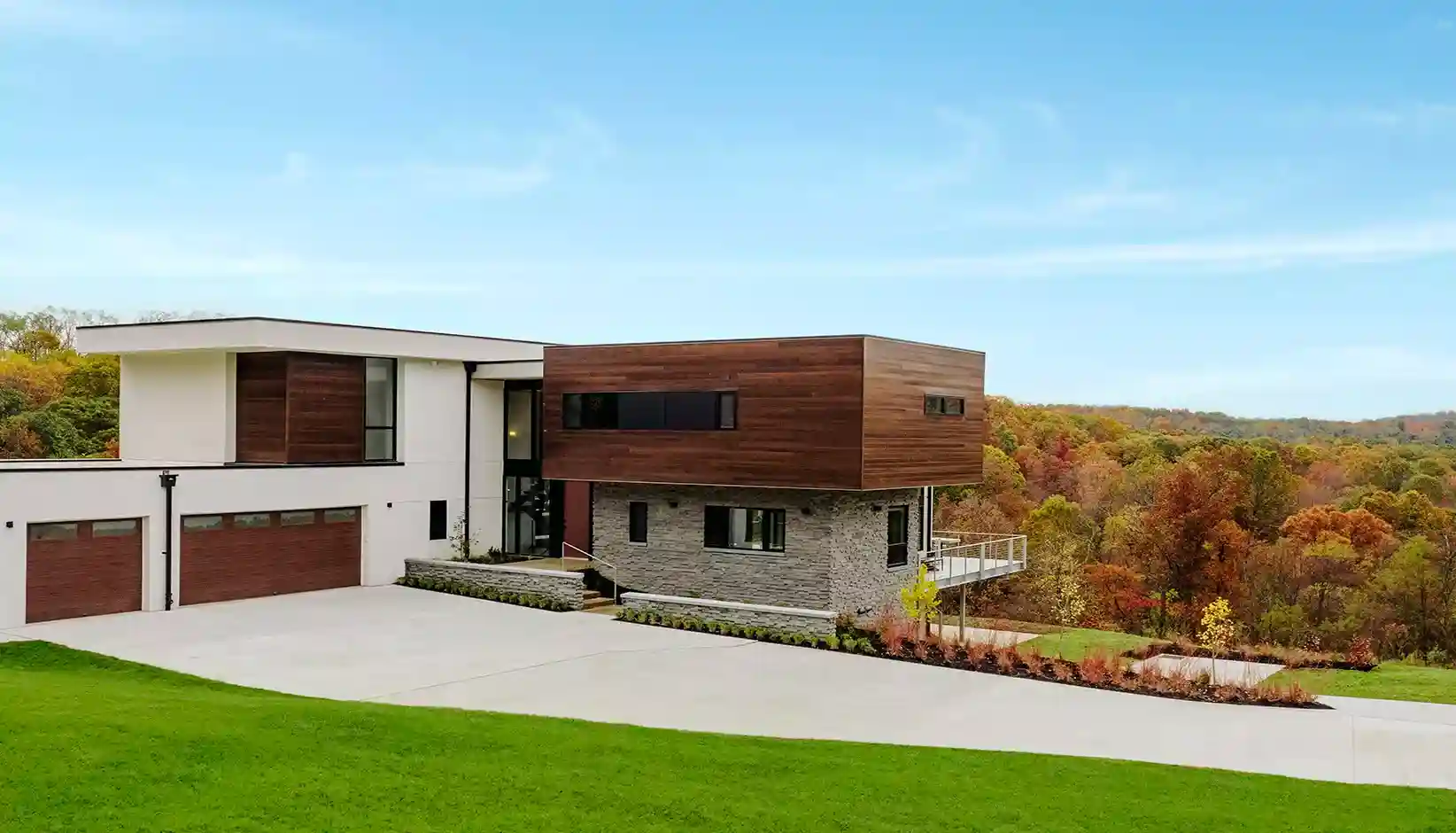

Flush With Long Windows*

Grooved with Short Windows*

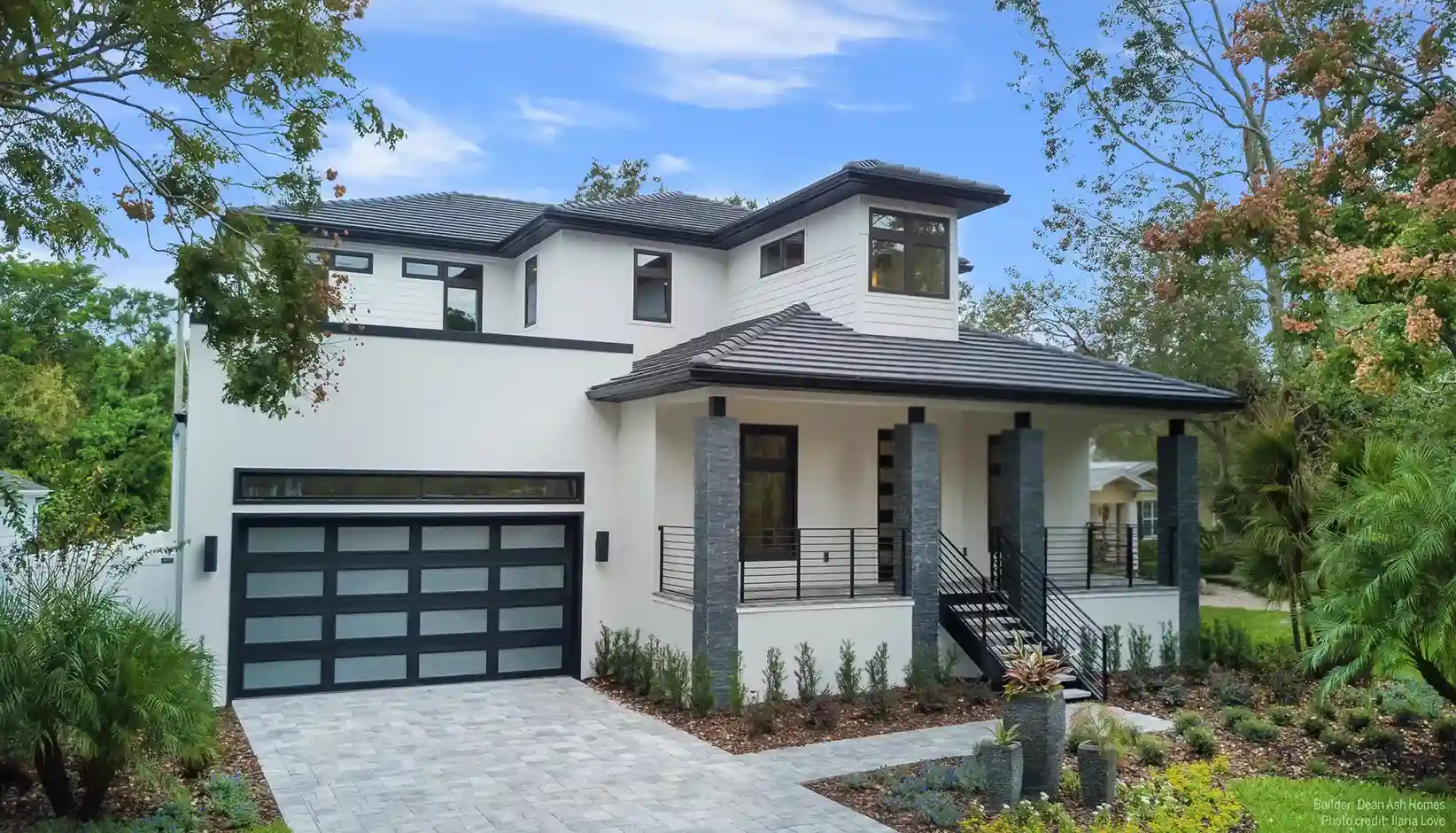

Flush with full view short panel windows*

Flush panel with short windows*

Grooved with Long Panel Windows*

Full view with short panel windows*

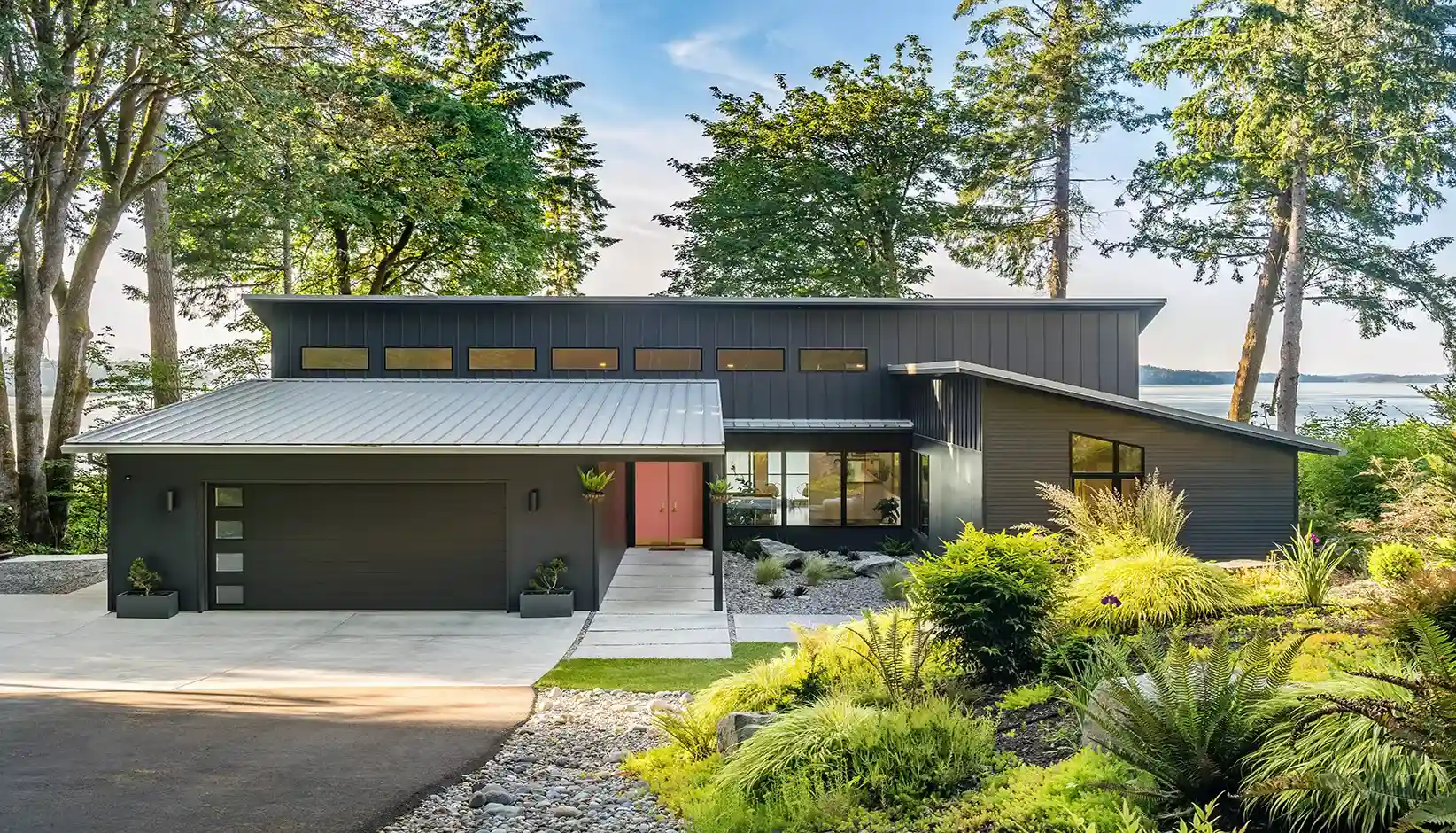

Flush with Contemporary Slim Windows

*Only available with Architectural Series Windows.
Learn more about our Ultra-Grain Plank finish options here.
Depending on door height, exact door appearance and number of sections may be different than illustrations above. Click here for complete details.

Top Sections

Contemporary Slim Windows

Contemporary Slim In Silver***

Contemporary Slim In Black***

Decorative Insert Series Windows

Colonial 509

Charleston 508

Stockton 612

Sunset 601

Charleston 608

Madison 611

Prairie 510

Madison ARCH613

Prairie 610

Sunset 501

Sunset 503

Sunset 603

Plain Short

Plain Long

Architectural Series Windows

Plain Short

Short With Rectangular Grilles

Plain Long

Short With Squares Grilles

Long With Rectangular Grilles

Long With Square Grilles

ARCH1 Plain

ARCH1 With Vertical Grilles

ARCH1 With Grilles

ARCH2 Plain

ARCH2 With Grilles

ARCH2 With Vertical Grilles

Kristin Short

Kristin Long

Trenton Short

Trenton Long

Clayton Short

Clayton Long

Wrought Iron Short*

Wrought Iron Long*

Wrought Iron Arch*

DOUBLE TOP SECTIONS

ARCH3 Plain

ARCH3 With Grilles

ARCH3 With Vertical Grilles

*Acrylic window designs.
**Sunset windows not available on Ultra-Grain doors.
***Contemporary Slim windows available on 2″ thick models only.

Specialty Glass Options

Rain*

Frosted

Obscure

Narrow Reed*

Colors

Standard Colors

Standard White

Almond

Sandtone

Bronze*

Chocolate

Mocha Brown*

Hunter Green*

Gray*

Charcoal*

Desert Tan

Premium Colors

Black*

Ultra-Grain Classic Medium Finish*

Ultra-Grain Classic Cherry Finish*

Ultra-Grain Classic Walnut Finish*

Ultra-Grain Cypress Slate Finish*

Lustra Black*±

Lustra Charcoal*±

Lustra Silver*±

Ultra-Grain Plank Kona*

Ultra-Grain Plank Espresso*

Ultra-Grain Plank Barnwood*

Ultra-Grain Plank Natural*

Ultra-Grain Plank Cedar*

*Available on select models.
Learn more about our Ultra-Grain Plank finish options here.
± Matte paint finish has a subtle texture.

Modern Steel Brochure

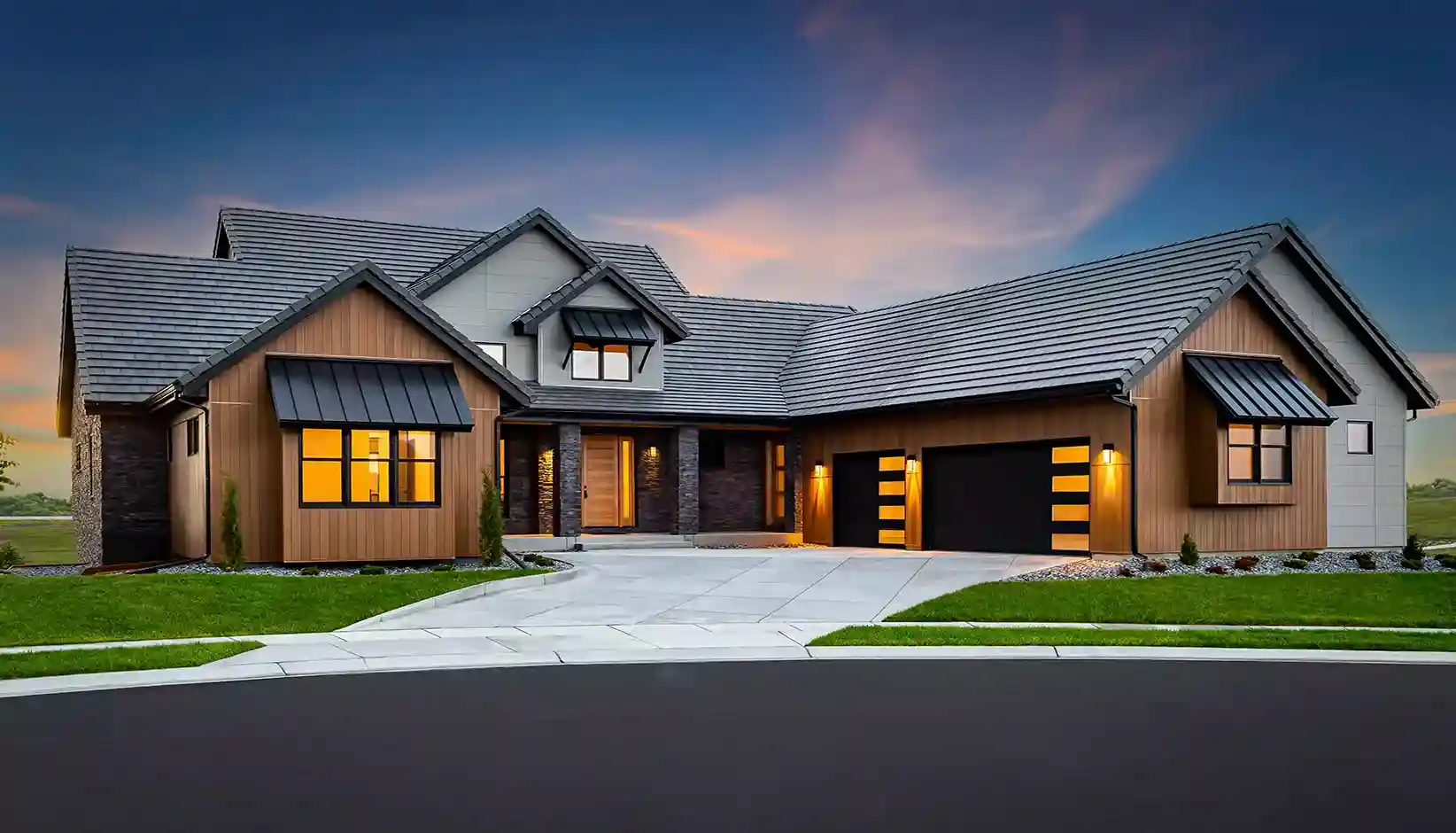

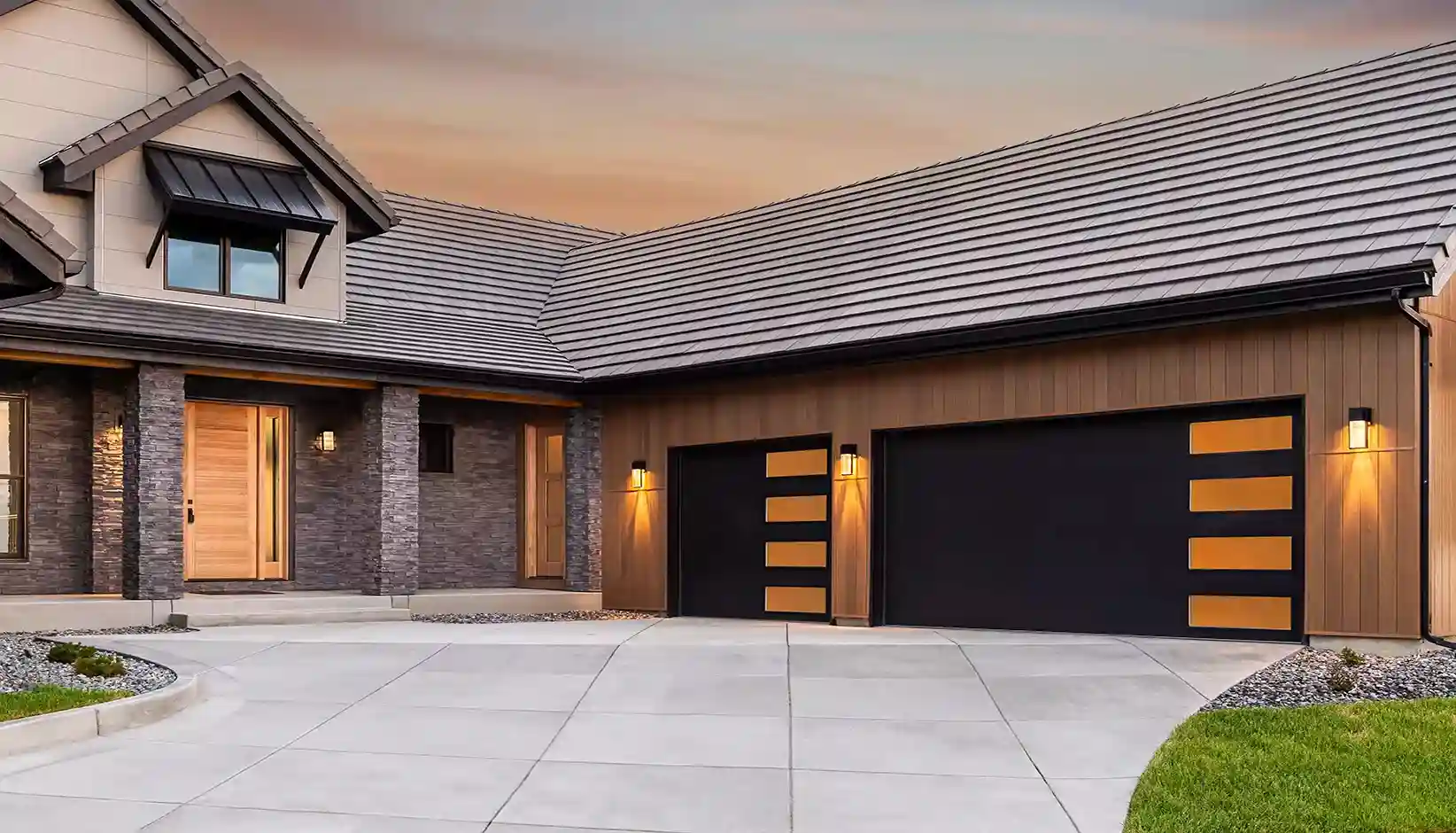

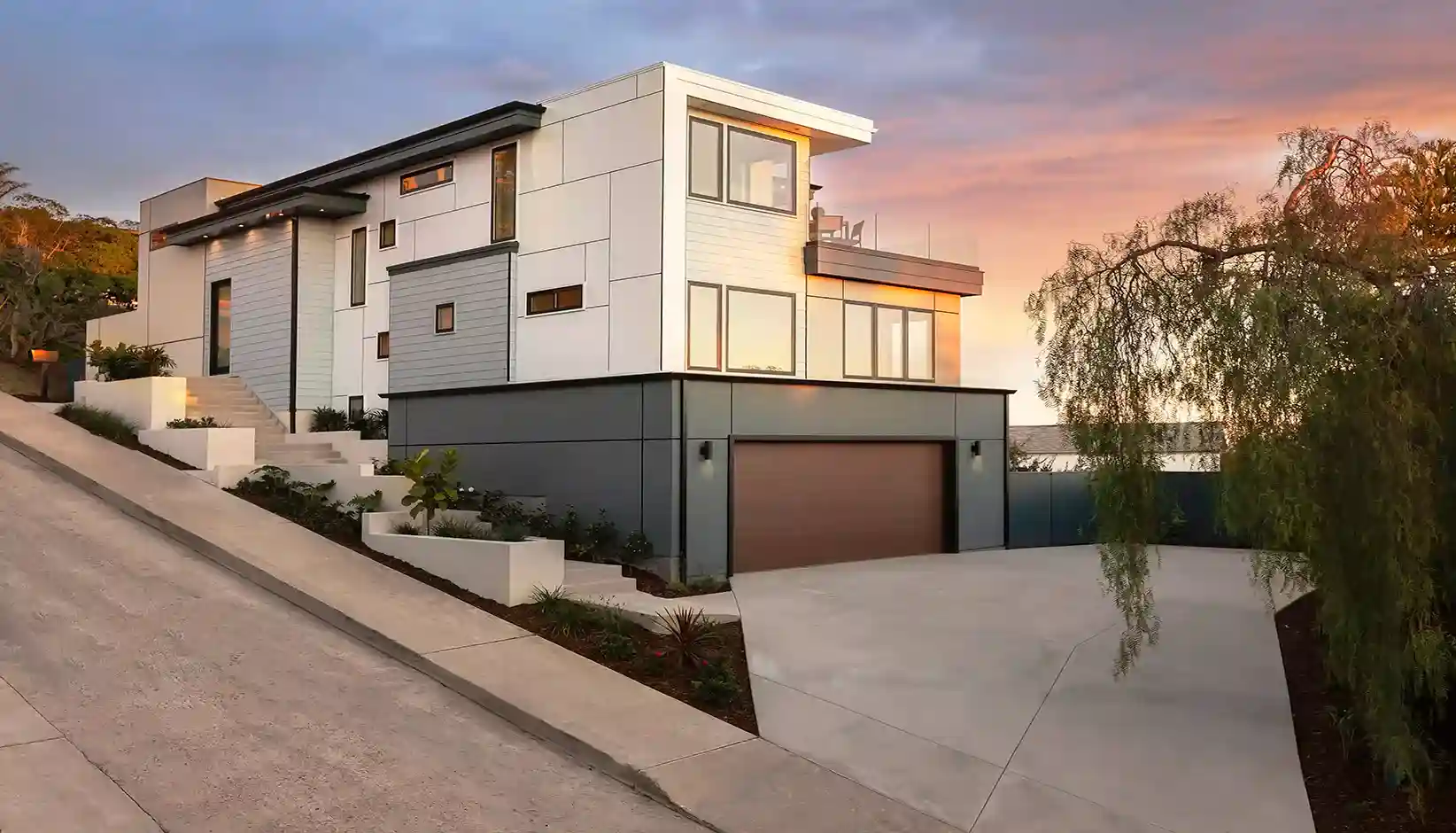

Modern Steel™ garage doors are a perfect match for contemporary and mid-century modern homes. You can choose doors with or without windows, and with or without grooves in the panels. They come in multiple paint, Ultra-Grain®, and Lustra™ finishes, allowing you to create the ideal look for your home.

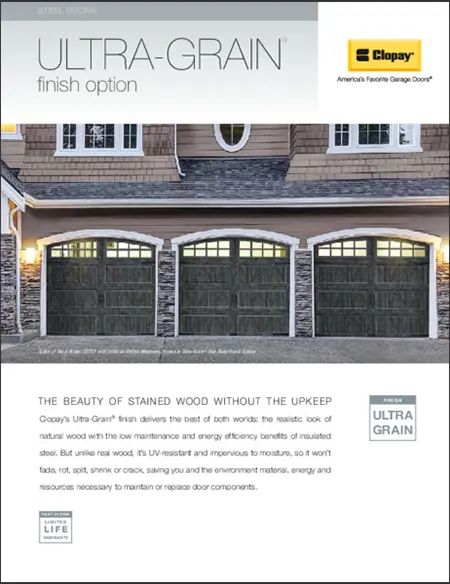

Ultra-Grain Paint Option Brochure

Clopay’s Ultra-Grain® finish offers the best of both worlds: the authentic appearance of natural wood combined with the low maintenance and energy efficiency advantages of insulated steel. Unlike real wood, it’s UV-resistant and resistant to moisture, so it won’t fade, rot, split, shrink, or crack. This saves both you and the environment the material, energy, and resources needed to maintain or replace door components.

Products Available Through Independent Dealers

Your garage door can make up to 30% of your home’s front appearance, so selecting the right design is crucial — and Clopay offers the widest selection to help you find the perfect fit.

Residential Sectional Insulated Steel Doors

Installation instructions for our residential insulated steel garage doors

Installation Warranty

All of our Master Authorized and Authorized Dealers offer a minimum 1 Year installation Warranty on Clopay replacement doors.

Steel Garage Doors Care and Maintenance

Steel Garage Doors Care and Maintenance

Residential Sectional 1-Layer And 2-Layer Doors

Installation Instructions for Residential Garage Doors
