Coachman®

Authentic steel and composite carriage house doors, insulated.

Combining aesthetics with functionality, these carriage house doors resemble wood but are constructed from layers of robust, easy-care steel and insulation, finished with a woodgrain textured composite overlay.

4-Layer Construction

Steel + insulation + steel + composite overlay

Design Customization

Choose from fifteen carriage house garage door designs, featuring optional windows and decorative hardware. Available in four standard paint colors, with the option to paint steel and overlay colors differently. Explore ColorBlast custom paint colors.* *Please note: Due to LRV requirements, painting Coachman doors with dark colors will void the warranty. For dark color options, consider Canyon Ridge® Elements.

Insulation

You can choose from different insulation options like 2-inch or 1-3/8-inch Intellicore® polyurethane, 2-inch or 1-3/8-inch polyurethane, 2″ polystyrene or 1-3/8″ polystyrene insulation. The R-values of these garage doors range from 6.5 to 18.4

Door Reinforcement

WindCode® door reinforcement product available for high wind load applications.

Environmental Assurance

Eco-Friendly Guarantee
Clopay doors meet environmental standards and regulations, free from HFCs. They comply with:

  • Washington HB 1112 – Addressing Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations revising ozone-depleting substances and halocarbon alternatives
  • New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Enhance your home’s sophistication with our elegant Coachman carriage house door, made from sturdy steel and composite materials.

  1. Composite overlay
  2. Steel
  3. Insulation with thermal break (2″ Intellicore® polyurethane, 2″ polystyrene, or 1-3/8″ polystyrene insulation. R-values range from 6.5 to 18.4)
  4. Steel

Intellicore® Insulation

More insulated. Quieter. More durable.
Garage doors equipped with Intellicore insulation technology offer homeowners the optimal intelligent solution. Intellicore, Clopay’s exclusive polyurethane foam, is injected into the garage door, expanding to fill every part of it. The outcome is a door of remarkable robustness, energy efficiency, and longevity.

Additional Features

  • Rust-Prevention System: The steel skins feature a robust, multi-layer coating process, beginning with hot-dipped galvanizing, followed by a protective metal oxide pretreatment, and finally a baked-on primer and topcoat.

  • A replaceable vinyl bottom weather seal, housed in a rust-resistant aluminum retainer, effectively prevents air and water infiltration.

  • The patented Safe-T-Bracket® ensures safety by preventing potential injuries that may occur if the bottom bracket is removed while the garage door is closed and under tension.

  • All Intellicore® insulated doors include standard 10-ball nylon rollers and heavy-duty 14-gauge steel hinges.

  • This product meets the 2015 IECC air infiltration requirement of 0.40 cfm/ft² or less (IECC, Section C402.5.2).

  • Window grilles are designed to be easily removable for convenient cleaning.

Enhance your curb appeal with numerous customizable choices! Select from an array of factory finish paint and overlay colors to achieve your preferred aesthetic. Additionally, our removable beveled edge clip-in window grilles simplify cleaning. Complete with spade lift handles and step plates, you can further enhance your doors with our decorative hardware options.

Door Designs

Series 1

Design 11

Design 12

Design 12

Series 2

Design 21

Design 22

Design 23

Series 3

Design 31

Design 32

Design 33

Design 34

Design 35

Design 36

Design 35

Design 36

Design 36

Solid Top Sections

TOP11

TOP12

TOP13

ARCH1

WINDOW DESIGNS

REC11

REC14

REC13

SQ23

REC13

SQ23

SQ24

ARCH3

ARCH1

ARCH1

Double Top Sections

ARC1A-Solid-Double Door

ARC1A-Windows-Double Door

ARC13A-Windows-Double Door

ARC3A-Windows-Double Door

ARC4A-Windows-Double Door

ARC14A-Windows-Double Door

Specialty Glass Option

Seeded

Rain

Frosted

Obscure

Colors

White Overlay/White Base

White Overlay/Almond Base

White Overlay/Desert Tan Base

White Overlay/Sandtone Base

Almond Overlay/Almond Base

Almond Overlay/White Base

Almond Overlay/Desert Tan Base

Almond Overlay/Sandtone Base

Desert Tan Overlay/Desert Tan Base

Desert Tan Overlay/White Base

Desert Tan Overlay/Almond Base

Desert Tan Overlay/Sandtone Base

Sandtone Overlay/Sandtone Base

Sandtone Overlay/White Base

Sandtone Overlay/Almond Base

Sandtone Overlay/Desert Tan Base

  • For Custom Colors, consult the Sherwin-Williams / Color Blast Finish Selection Guide.
  • For doors planned to be painted black or very dark colors with an LRV of 12 or lower, refer to an alternative product.
  • For colors with an LRV of 13 to 39, we mandate the usage of tested and approved paints. Employing other paints will nullify the door’s warranty.

Hardware​

Handles

Spade Lift Handles (included)

Spear Lift Handles

Colonial Lift Handles

Decorative Lift Handles

Ring Door Knocker

Escutcheon Plates

Twisted “L” Handles

Plates

Spade Strap Hinge

Spear Strap Hinge

Colonial Strap Hinge

Hinges

Spade Strap Hinge

Spear Strap Hinge

Colonial Strap Hinge

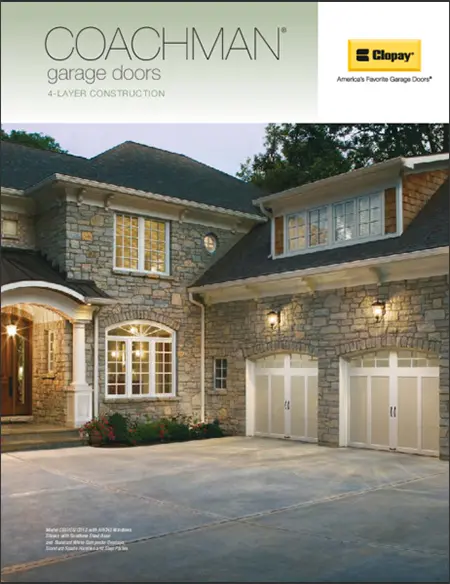

Coachman Brochure
